MPC
Modular Port Concentrators
MIC
Modular Interface Card
DPC
Dense Port Concentrators

Talk to a solution specialist today and get started on your next generation Juniper network.

Juniper Interface Options, often called Line Cards, allow for customization of chassis-based routers’ port configurations. There are four main types of interface options for the Juniper MX line. Below is a brief overview of each

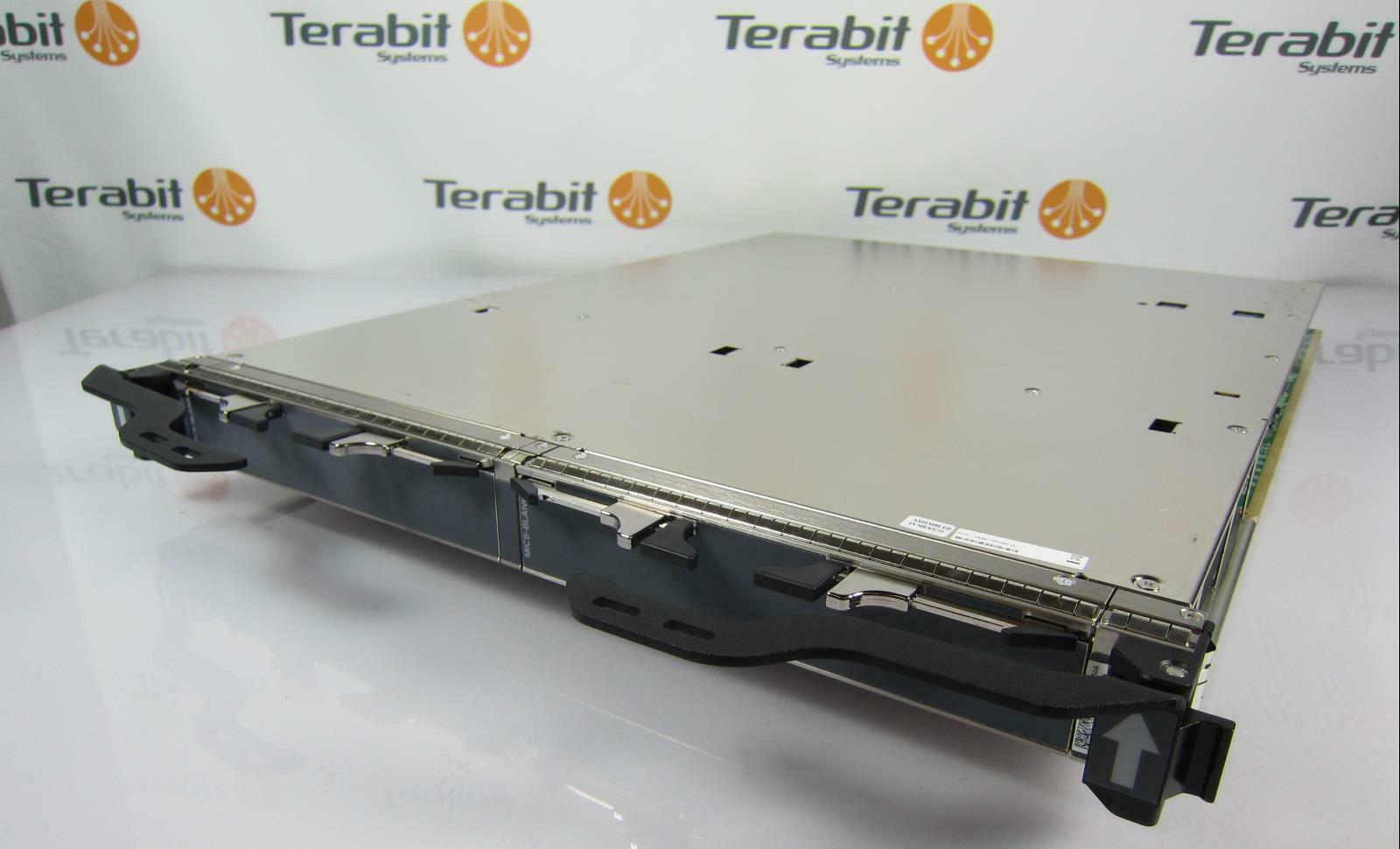

Let’s begin with Modular Port Concentrators or MPCs. The fixed-configuration MPCs feature the advanced Trio chipset and are our customers’ most popular choices. Like the MPC5E-40G10G. MPCs like that support up to 160 Gbps ports per slot. These fixed-configuration MPCs provide higher port density over MICs and combine packet forwarding and Ethernet interfaces in a single line card. Full-width MPCs insert directly into an open slot in the chassis of an MX router.

Modular MPCs are ‘empty’ line cards that accept two half-width MICs (see below) allowing for port customization, especially with legacy setups requiring copper connections. Very popular: the MX-MPC3E-3D.

Next, let’s cover MICs. Modular Interface Cards are installed into MPCs. They provide the physical connection – the ports. A fine example: MIC3-3D-2X40GE-QSFPP. Two MICs can be installed into each MPC, but obviously not the fixed configuration MPCs. As noted above, there is a wide range of MIC port configurations available from 1G to 100G to help you transition from legacy copper to fiber in your network.

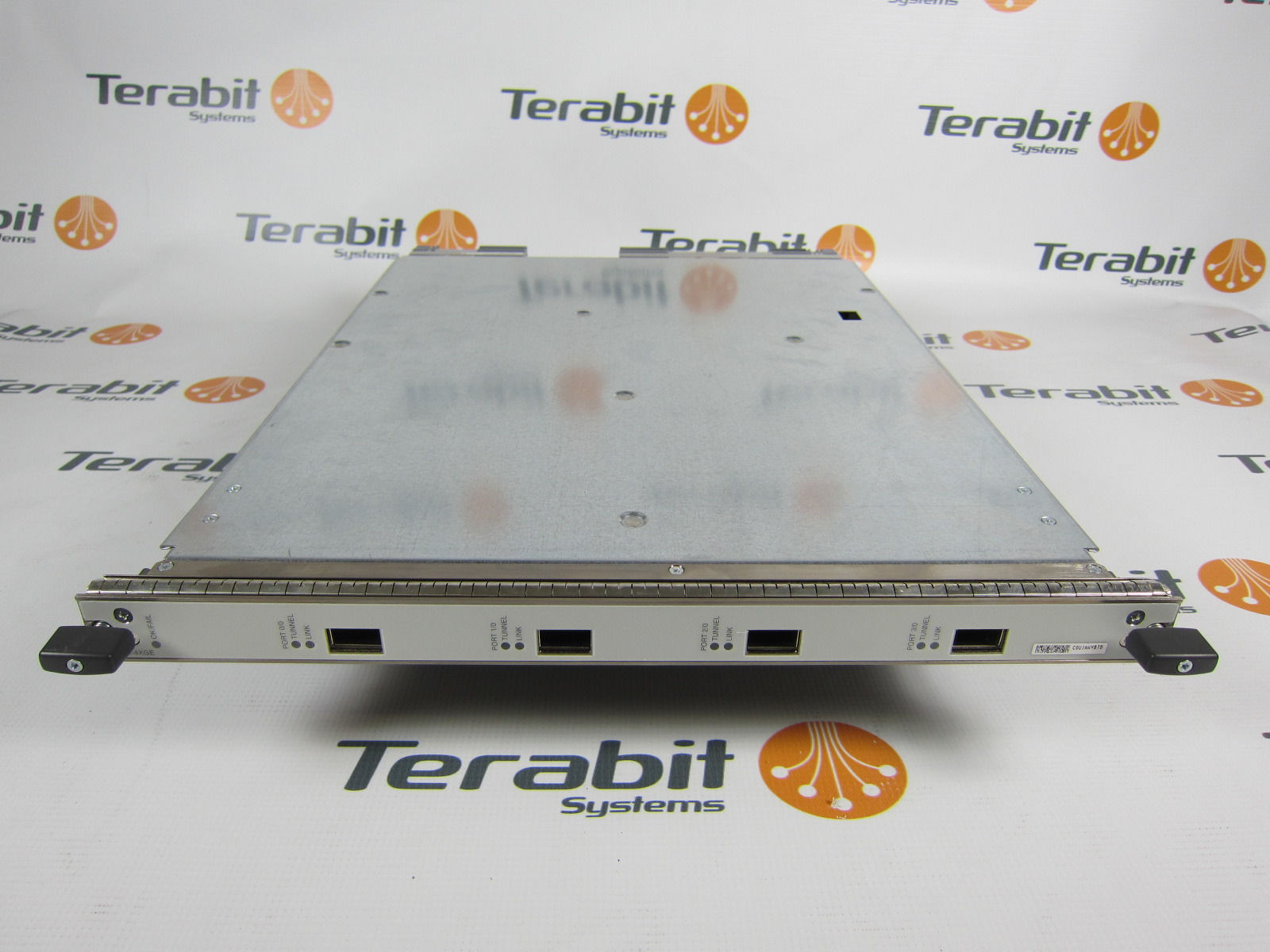

Lastly there are DPCs, or Dense Port Concentrators. DPCs came before MPCs and are the first generation of an update to Flexible Port Concentrators (FPCs) supporting up to 80Gbps per slot. DPCs are not recommended for use with MPCs. As they are older and support less throughput, they are a good choice for those on tight budgets. More often than not the port density, throughput, and future-proofing of an MPC will justify the slight stretch in your budget.

Click here to read a comparison of 100G MPCs. And here to read about DPCs. And please call us at +1 (415) 230-4353 or send us an email to discuss your network and how to choose the right interface option.

Part Number Description

20 Port GE + 2 port 10GE DPC with L2+L3 features, Requires Optics Sold Separately

40x1GE Enhanced DPC for MX, requires optics sold separately

40 Port 10/100/1000 RJ-45 DPC with L2+L3 Features.

4x10GE Enhanced DPC for MX, requires optics sold separately

20 Port GE + 2 port 10GE Enhanced Queuing DPC with L2+L3 Features, Requires Optics Sold Separately

20x1G Enhanced Queuing DPC for MX with full L2/L3 features & VLAN-HQoS, requires optics sold separately

40x1GE DPC for MX with L2/L2.5 features, requires optics sold separately

4x10GE DPC for MX with L2/L2.5 features, requires optics sold separately

40x1G Enhanced Queuing DPC for MX with L2/L2.5 features & VLAN-HQoS, requires optics sold separately

4x10G Enhanced Queuing DPC for MX with L2/L2.5 features & VLAN-HQoS, requires optics sold separately

16 port channelized T1 / channelized E1 (down to DS0) MIC, RJ48 connector

1 port OC192/STM64 MIC, (Requires a pluggable XFP optics module, Sold separately)

20x10/100/1000 MIC for MX, requires optics sold separately

2x10G MIC for MX, requires optics sold separately

40x10/100/1000 RJ-45 full height MIC (fixed optics)

Low density multirate MIC - Channelized, 4 port channelized OC3 / 2 port channelized OC12 (down to DS0) MIC, (Requires a pluggable SFP optics module); Requires license S-MX80-Q when used on MX80 platform

Multirate Circuit Emulation MIC, 4 port channelized OC3/STM1 (down to DS0) or 1 port channelized OC12/STM4 (down to DS0) CE MIC, Port 0 can be configured for OC12 which disables ports 1-3 (Requires a pluggable SFP optics module )

Low density multirate MIC, 4 port non-channelized OC3-OC12 / 1 port non-channelized OC48 MIC, (Requires a pluggable SFP optics module )

4x10G MIC for MX, requires optics sold separately. Only supported on MX-MPC2 line cards

8 port channelized DS3 (down to DS0) / non-channelized E3 MIC, 75 ohm miniSMB (Requires CBL-DS3-E3-M-S to be ordered separately); Includes S-MIC-3D-8CHDS3 to support DS3 Channelization (down to DS0); Requires license S-MX80-Q when used on MX80 platform

High density multirate MIC - Channelized, 8 port channelized OC3 / 4 port channelized OC12 (down to DS0) MIC, (Requires a pluggable SFP optics module); Requires license S-MX80-Q when used on MX80 platform

8 port non-channelized DS3 / non-channelized E3 MIC, 75 ohm miniSMB (Requires CBL-DS3-E3-M-S to be ordered separately); Requires S-MIC-3D-8CHDS3 to support DS3 Channelization (down to DS0)

Multirate ATM MIC, 8 port non-channelized OC3/STM1 or 2 port non-channelized OC12/STM4 ATM MIC, Ports 0,4 can be configured for OC12 which disables ports 1-3, 5-7, Requires license S-MX80-Q when this MIC is used on MX80, (Requires a pluggable SFP optics m

High density multirate MIC, 8 port non-channelized OC3-OC12 / 4 port non-channelized OC48 MIC, (Requires a pluggable SFP optics module )

MIC with 10x10GE SFP+ interface, Optics sold separately.

MIC with 1x100GE CFP interface, Optics sold separately.

MIC with 1x100GE CXP interface, Optics sold separately.

16x10GE line card, price includes full scale L2/L2.5 and reduced scale L3 features; requires SFPP optics sold separately

16x10GE line card bundle, price includes full scale L3, L2 and L2.5 features; requires SFPP optics sold separately

Removable MPC septum to for 1/2 height MIC, Spare

MPC4E with 2x100GE and 8x10GE ports. Price includes full scale L2/L2.5 and reduced scale L3 features. Optics sold separately.

MPC4E with 2x100GE and 8x10GE ports. Includes full scale L2/L2.5, L3 features and up to 16 L3VPN instances per MPC. Optics sold separately.

MPC4E with 2x100GE and 8x10GE ports. Includes full scale L2/L2.5, L3 and L3VPN features. Optics sold separately.

MPC4E with 32x10GE SFPP ports. Includes full scale L2/L2.5, L3 features and upto 16 L3VPN instances per MPC. Optics sold separately.

MPC4E with 32x10GE SFPP ports. Includes full scale L2/L2.5, L3 and L3VPN features. Optics sold separately.

MPC4E with 32x10GE SFPP ports. Price includes full scale L2/L2.5 and reduced scale L3 features. Optics Sold Separately.

MPC5E-40G10G MPC, price includes, full scale L2, L2.5, L3 & 32 L3VPN licenses; Optics sold separately

MPC5E-40G10G MPC, price includes, full scale L2, L2.5, L3 & L3VPN features; requires optics sold separately

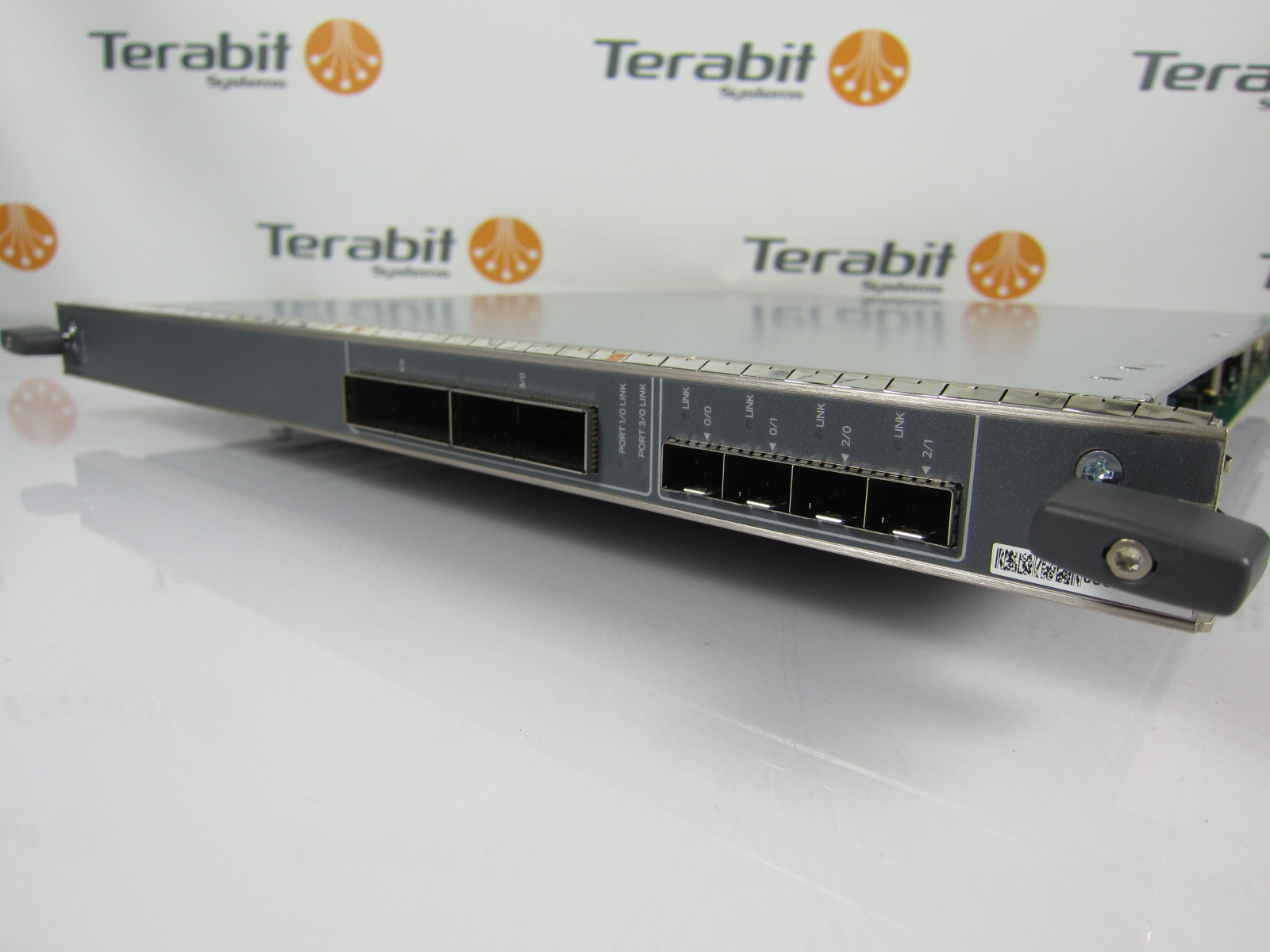

MPC5EQ-100G10G MPC, price includes, HQOS, 1 million queues, full scale L2/L2.5 and reduced scale L3 features; requires optics sold separately

MPC5EQ-100G10G MPC, price includes, HQOS, 1 million queues, full scale L2, L2.5, L3 & 32 L3VPN licenses; Optics sold separately

MPC5EQ-100G10G MPC, price includes, HQOS, 1 million queues, full scale L2, L2.5, L3 & L3VPN features; requires optics sold separately

MPC5EQ-40G10G MPC, price includes, HQOS, 1 million queues, full scale L2/L2.5 and reduced scale L3 features; requires optics sold separately

MPC5EQ-40G10G MPC, price includes, HQOS, 1 million queues, full scale L2, L2.5, L3 & 32 L3VPN licenses; Optics sold separately

MPC5EQ-40G10G MPC, price includes, HQOS, 1 million queues, full scale L2, L2.5, L3 & L3VPN features; requires optics sold separately

MPC6E line card bundle w/ 2 MICs, 4x100G CFP2 ports per card, price includes full scale L2, L2.5, L3 and 32 L3VPN licenses; Optics sold separately

MPC6E line card bundle w/ 2 MICs, 2x100G CFP2 ports per MPC, price incl. full scale L2, L2.5, L3 & L3VPN features; req. CFP2 opticssold separately

40 x 10GE SFP + port line card, price includes full scale L2/L2.5 and reduced scale L3 features, Optics sold separately

40 x 10GE SFP + port line card bundle, price includes full scale L2/L2.5, L3 features and up to 32 L3VPN instances per card. Optics sold separately

40 x 10GE SFP + port line card bundle, price includes full scale L3, L2 and L2.5 features. Optics sold separately

12 x QSFP+/QSFP28 multirate port line card, price includes full scale L2/L2.5 features and reduced scale L3 features.4 ports out of12 support QSFP 28.Optics sold separately

12 x QSFP+/QSFP28 multirate port line card bundle, price includes full scale L2/L2.5, L3 features and up to 32 L3VPN instances per card.4 ports out of 12 support QSFP28.Optics sold separately

12 x QSFP+/QSFP28 multirate port line card bundle, price includes full scale L3, L2 and L2.5 features.4 ports out of 12 support QSFP28.Optics sold separately

40 x 10GE SFP + port line card bundle, price includes full scale L2/L2.5 and reduced scale L3 features, full scale per-VLAN queuing, H-QoS, Optics sold separately

40 x 10GE SFP + port line card bundle, price includes full scale L2/L2.5, L3 features and up to 32 L3VPN instances per card, full scale per-VLAN queuing, H-QoS. Optics sold separately

40 x 10 GE SFP + port line card bundle, price includes full scale L3, L2 and L2.5 features, full scale per-VLAN queuing, H-QoS. Optics sold separately

12 x QSFP+/QSFP28 multirate port line card bundle, price includes full scale L2/L2.5 features and reduced scale L3 features. 4 ports out of 12 support QSFP 28.Full scale Per-VLAN queueing, HQoS.Optics sold separately

12 x QSFP+/QSFP28 multirate port line card bundle, price includes full scale L2/L2.5, L3 features and upto 32 L3VPN instances per card.4 ports out of 12 support QSFP28.Full scale Per-VLAN queueing, HQoS.Optics sold separately

12 x QSFP+/QSFP28 multirate port line card bundle, price includes full scale L3, L2 and L2.5 features.4 ports out of 12 support QSFP 28.Full scale Per-VLAN queueing, HQoS.Optics sold separately

MultiServices MPC for the MX platforms

Multiservice Services MIC, 16G of Memory. Requires JunOs 13.2 or higher

BNDL, Multi-service Services MPC, 128G of Memory, 4 NPUs Enabled, Bundle of MS-MPC-64G and S-MS-MPC-128G-UPG. Requires JunOs 13.2 or higher

MX Flexible PIC Concentrator (accepts Type 2 PICs)

MX Flexible PIC Concentrator (accepts Type 3 PICs)

1xTrio Chipset MPC, port queuing, price includes full scale L2/L2.5 and reduced scale L3 features

1xTrio Chipset MPC, per-IFL HQoS, 128K queues (max 64K egress); price includes full scale L2/L2.5 and reduced scale L3 features

MX-MPC1-3D-Q line card bundle, price includes full scale L3, L2 and L2.5 features

MX-MPC1-3D line card bundle, price includes full scale L3, L2 and L2.5 features

1xTrio Chipset Enhanced Enhanced MPC, port queuing, price includes full scale L2/L2.5 and reduced scale L3 features

1xTrio Chipset Enhanced MPC, per-IFL HQoS, 128K queues (max 64K egress); price includes full scale L2/L2.5 and reduced scale L3 features

MX-MPC1E-3D-Q line card bundle, price includes full scale L3, L2 and L2.5 features

MX-MPC1E-3D line card bundle, price includes full scale L3, L2 and L2.5 features

2xTrio Chipset MPC, port queuing, price includes full scale L2/L2.5 and reduced scale L3 features

2xTrio Chipset MPC, per-IFL HQoS, 512K queues; price includes full scale L2/L2.5 and reduced scale L3 features

MX-MPC2-3D-EQ line card bundle, price includes full scale L3, L2 and L2.5 features

2xTrio Chipset MPC, per-IFL HQoS, 256K queues (max 128K egress); price includes full scale L2/L2.5 and reduced scale L3 features

MX-MPC2-3D-Q line card bundle, price includes full scale L3, L2 and L2.5 features

MX-MPC2-3D line card bundle, price includes full scale L3, L2 and L2.5 features

2xTrio Chipset Enhanced MPC, port queuing, price includes full scale L2/L2.5 and reduced scale L3 features

2xTrio Chipset Enhanced MPC, per-IFL HQoS, 512K queues; price includes full scale L2/L2.5 and reduced scale L3 features

MX-MPC2E-3D-EQ line card bundle, price includes full scale L3, L2 and L2.5 features

2xTrio Chipset Enhanced MPC, per-IFL HQoS, 256K queues (max 128K egress); price includes full scale L2/L2.5 and reduced scale L3 features

MX-MPC2E-3D-Q line card bundle, price includes full scale L3, L2 and L2.5 features

MX-MPC2E-3D line card bundle, price includes full scale L3, L2 and L2.5 features

MPC3E with support for 100GE, 40GE and 10GE interfaces. Includes full scale L2, L3, L3VPN features. Optics sold separately.
