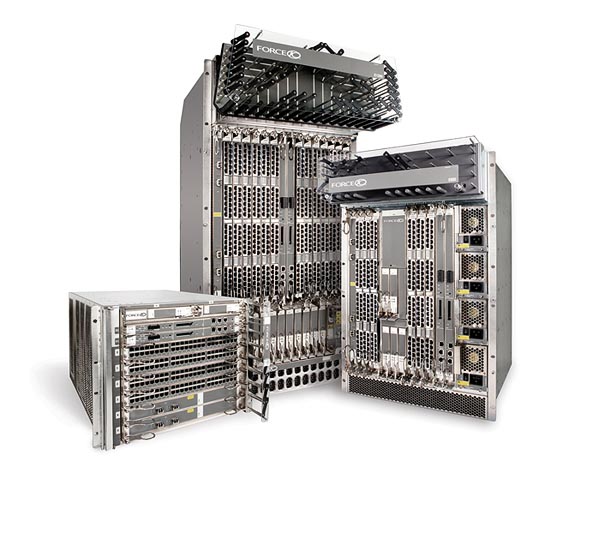

TeraScale E-Series Switch/Routers
Highest Ethernet Density
The Force10 E-Series delivers unparalleled Gigabit Ethernet and 10 Gigabit Ethernet port densities. The E1200/E600 support 48 Gigabit Ethernet ports or 16 10 GbE ports per line card slot and up to 14 and 7 line card slots per chassis respectively. The E300 supports 48 GbE ports or eight 10 GbE port per line card slot and up to six line card slots per chassis.
Line-Rate Performance
With six custom Force10 ASICs and advanced Ternary Content Addressable Memories (TCAM) on every line card, the Force10 E-Series provides line-rate, non-blocking forwarding performance across all ports, even with all features enabled imultaneously. These features include:
- Extended ACLs for packet filtering and policy routing
- Multi-field packet lookup and classification for QoS
- Packet metering and marking for rate limiting and policing
- Congestion control using WRED and WFQ
Full L2 Switching / L3 Routing
Force10 ASICs, E-Series architecture and FTOS software work in unison to give robust L2 switching and L3 routing functionality to the E-Series with the scalability and security required for applications spanning the LAN, MAN, and Internet-connected WAN. The Force10 E-Series L2 and L3 features include:
- RIP, OSPF, IS-IS and BGP IPv4 unicast routing protocols
- PIM-SM, PIM-DM, SSM and MSDP IPv4 multicast routing protocols
- OSPF, IS-IS and BGP IPv6 unicast routing protocols
- PIM-SM, and SSM IPv6 multicast routing protocols
- Prefix-based distributed forwarding table on every line card
- Forwarding table support for up to 512K IPv4 and 32 IPv6 routes
- VLAN Redundancy, Rapid Spanning Tree, VLAN Stacking
| Part Number | Description | MSRP |
|---|---|---|
| CH-E300 | E300 6-slot chassis with backplane | Call |
| CH-E600I | E600i 7-slot chassis with backplane | Call |
| CH-E1200I-DC | E1200i-DC 14-slot DC power chassis with backplane | Call |
| CH-E1200I-AC | E1200i-AC 14-slot AC power chassis with backplane | Call |
| CC-E300-FAN | E300 fan subsystem | Call |
| CC-E600-FAN | E600 fan subsystem | Call |
| CC-E1200I-FAN | E1200i-AC fan subsystem | Call |
| LC-EF3-RPM | E300 Route Processor Module (RPM) (series EF3) | Call |
| LC-EF-RPM | E600/E1200 Route Processor Module (RPM) (series EF) | Call |
| CC-E-SFM3 | E-Series Switch Fabric Module 3 (SFM3) | Call |
| CC-E300-PWR-DC | E300 DC Power Entry Module (PEM) | Call |
| CC-E300-1200W-AC | E300 1200 W/800 W AC Power Supply Module (PSM) | Call |
| CC-E600-PWR-DC | E600 DC PEM | Call |
| CC-E600-2500W-AC | E600 2500 W/1500 W AC PSM | Call |
| CC-E1200-PWR-DC | E1200 DC PEM | Call |
| CC-E1200I-2800W-AC | E1200i-AC 2800 W AC PSM | Call |
| LC-EF-10GE-4P | E600/E1200 4-port 10 GbE line card – XFP modules required (series EF) | Call |
| LC-EG-10GE-4P | E600/E1200 4-port 10 GbE line card – XFP modules required (series EG) | Call |
| LC-EF-10GE-16P | E600/E1200 16-port 10 Gigabit Ethernet line card – XFP modules required (series EF) | Call |
| LC-EG-10GE-16P | E600/E1200 16-port 10 GbE line card – XFP modules required (series EG) | Call |
| LC-EF-1GE-48P | E600/E1200 48-port GbE line card – SFP modules required (series EF) | Call |
| LC-EG-1GE-48P | E600/E1200 48-port GbE line card – SFP modules required (series EG) | Call |
| LC-EF-GE-48T | E600/E1200 48-port 10/100/1000Base-T line card with RJ45 interfaces (series EF) | Call |
| LC-EG-GE-48T | E600/E1200 48-port 10/100/1000Base-T line card with RJ45 interfaces (series EG) | Call |
| LC-EF-GE-48T1 | E600/E1200 48-port high density 10/100/1000Base-T line card with RJ45 interfaces (series EF) | Call |
| LC-EF-GE-90M | E600/E1200 90-port high density 10/100/1000Base-T line card with MRJ21 interfaces (series EF) | Call |
| LC-EG-OC-48C-4P | E600/E1200 4-port OC-3c/ OC-12c/OC-48c POS line card – SFP modules required (series EG) | Call |
| LC-EF3-10GE-2P | E300 2-port 10 GbE line card – XFP modules required (series EF3) | Call |
| LC-EG3-10GE-2P | E300 2-port 10 GbE line card – XFP modules required (series EG3) | Call |
| LC-EF3-10GE-8P | E300 8-port 10 GbE line card – XFP modules required (series EF3) | Call |
| LC-EG3-10GE-8P | E300 8-port 10 GbE high capacity line card – XFP modules required (series EG3) | Call |
| LC-EG3-10GE-8P | E300 8-port 10 GbE line card – XFP modules required (series EG3) | Call |
| LC-EF3-1GE-24P | E300 24-port GbE line card – SFP modules required (series EF3) | Call |
| LC-EG3-1GE-24P | E300 24-port GbE line card – SFP modules required (series EG3) | Call |
| LC-EF3-GE-48T | E300 48-port high density 10/100/1000Base-T line card with RJ45 interfaces (series EF3) | Call |
| SW-EF-LATEST | FTOS software | Call |
