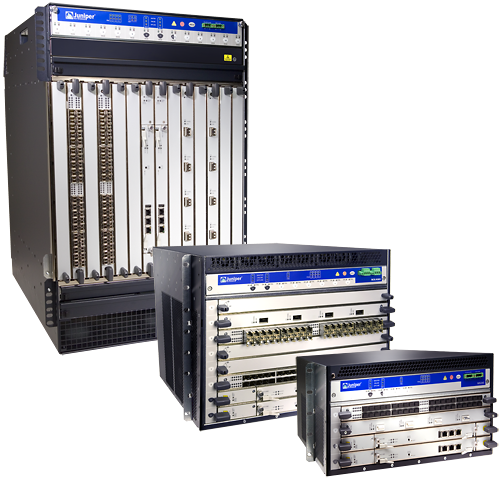

Juniper MX Series
The MX Series is a family of high-performance Ethernet Services Routers with powerful switching features and are designed for high-performance service providers and enterprises. The MX Series has advanced MPLS, Multicast, Quality of Service, low latency and security capabilities. It provides flexibility and reliability to support advanced applications and services, including high-speed transport and VPN services, next-generation broadband multiplay services and high-volume Internet data center internetworking.
Juniper MX80
The MX80 3D Ethernet Services router is the smallest member of MX family, featuring small form factor and one Modular Port Concentrator (MPC) with 80 Gbit/s capacity
| Part Number | Description | MSRP |
|---|---|---|
| MX80-48T-AC | Juniper Networks MX80-48T chassis with 48x1GE RJ-45 and 4x10GE XFP built-in ports, AC power supply, Fan Tray w/Filter | Call |
| MX80-48T-AC-B | Juniper Networks MX80-48T chassis with 48x1GE, 4x10GE, AC power supply, Fan Tray w/Filter, JUNOS-WW | Call |
| MX80-48T-DC | Juniper Networks MX80-48T chassis with 48x1GE RJ-45 and 4x10GE XFP built-in ports, AC power supply, Fan Tray w/Filter | Call |
| MX80-48T-DC-B | Juniper Networks MX80-48T chassis with 48x1GE, 4x10GE, AC power supply, Fan Tray w/Filter, JUNOS-WW | Call |
| MX80-5G-AC-ADV-B | Juniper Networks MX80 Promotional 5G Bundle for channels, Includes MX80 Modular AC, spare AC Power supply, 20x1G MIC including L3-ADV license, Queuing, Inline Jflow, Junos WW. (4x10G fixed ports and 1x front empty MIC slot restricted) | Call |
| MX80-5G-AC-B | Juniper Networks MX80 Promotional 5G Bundle, Includes MX80 Modular AC, spare AC Power supply, 20x1G MIC including L3-ADV license, Queuing, Inline Jflow, Junos WW. (4x10G fixed ports and 1x front empty MIC slot restricted) | Call |
| MX80-5G-DC-ADV-B | Juniper Networks MX80 Promotional 5G Bundle for channels, Includes MX80 Modular DC, spare DC Power supply, 20x1G MIC including L3-ADV license, Queuing, Inline Jflow, Junos WW. (4x10G fixed ports and 1x front empty MIC slot restricted) | Call |
| MX80-5G-DC-B | Juniper Networks MX80 Promotional 5G Bundle, Includes MX80 Modular DC, spare DC Power supply, 20x1G MIC including L3-ADV license, Queuing, Inline Jflow, Junos WW. (4x10G fixed ports and 1x front empty MIC slot restricted) | Call |
| MX80-AC | Juniper Networks MX80 chassis with 2 MIC slots, 4x10GE XFP built-in ports, AC power supply, Fan Tray w/Filter | Call |
| MX80-AC-B | Juniper Networks MX80 chassis with 2 MIC slots, 4x10GE ports, AC power supply, Fan Tray w/Filter, JUNOS-WW | Call |
| MX80-DC | Juniper Networks MX80 chassis with 2 MIC slots, 4x10GE XFP built-in ports, DC power supply, Fan Tray w/Filter | Call |
| MX80-DC-B | Juniper Networks MX80 chassis with 2 MIC slots, 4x10GE, DC power supply, Fan Tray w/Filter, JUNOS-WW | Call |
| MIC-3D-20GE-SFP | Juniper Networks 20x10/100/1000 MIC for MX, requires optics sold separately | Call |
| MIC-3D-2XGE-XFP | Juniper Networks 2x10G MIC for MX, requires optics sold separately | Call |
| MIC-3D-40GE-TX | Juniper Networks 40x10/100/1000 RJ-45 full height MIC (fixed optics) | Call |
| MIC-3D-4OC3OC12-1OC48 | Juniper Networks Low density multirate MIC, 4 port non-channelized OC3-OC12 / 1 port non-channelized OC48 MIC, (Requires a pluggable SFP optics module ) | Call |
| MIC-3D-8OC3OC12-4OC48 | Juniper Networks High density multirate MIC, 8 port non-channelized OC3-OC12 / 4 port non-channelized OC48 MIC, (Requires a pluggable SFP optics module ) | Call |
| PWR-MX80-AC-S | Juniper Networks MX80 AC Power Supply | Call |
| PWR-MX80-DC-S | Juniper Networks MX80 DC Power Supply | Call |
Juniper MX240 Router
The Juniper MX240 Ethernet Services Router has a performance of 200+ Gbit/s throughput, scalability, and reliability in a space-efficient package.
| Part Number | Description | MSRP |
|---|---|---|
| MX240-AC-CDPC-B | Juniper Networks MX240BASE-AC-HIGH with redundant Power, and DPCE-R-20GE-2XGE | Call |
| MX240-AC-SVC-B | Juniper Networks MX240BASE-AC-HIGH with redundant Power, MS-DPC, and DPCE-R-20GE-2XGE | Call |
| MX240BASE-AC-HIGH | Juniper Networks Chassis, Midplane, 1 RE, 1SCB, 1 AC PEM | Call |
| MX240BASE-AC-LOW | Juniper Networks Chassis, Midplane, 1 RE, 1 SCB, 2 AC PEMs | Call |
| MX240BASE-DC | Juniper Networks Chassis, Midplane, 1 RE, 1 SCB, 1 DC PEM | Call |
| MX240-DC-CDPC-B | Juniper Networks MX240BASE-DC with a DPCE-R-20GE-2XGE | Call |
| MX240-PREMIUM-AC-HIGH | Juniper Networks Base System with redundant RE-2000, SCB, and power (2 AC PEMs) | Call |
| MX240-PREMIUM-AC-LOW | Juniper Networks Base System with redundant RE-2000, SCB, and power (4 AC PEMs) | Call |
| MX240-PREMIUM-DC | Juniper Networks Base System with redundant RE-2000, SCB, and power (2 DC PEMs) | Call |
Juniper MX480 Router
The MX480 Ethernet Services Router is mainly used for dense dedicated access aggregation and provider edge services in medium-size and large Points of Presence (POPs).
| Part Number | Description | MSRP |
|---|---|---|
| MX480BASE-AC | Juniper Networks Chassis, Midplane, RE, 1-SCB, 3 AC PEM | Call |
| MX480BASE-DC | Juniper Networks Chassis, Midplane, RE, 1-SCB, 2 DC PEM | Call |
| MX480-PREMIUM-AC | Juniper Networks Base system with redundant RE-2000, SCB, and power | Call |
| MX480-PREMIUM-DC | Juniper Networks Base system with redundant RE-2000, SCB, and power | Call |
Juniper MX960 Router
The Juniper MX960 Router is a high-density Layer 2 and Layer 3 Ethernet platform for several service provider Ethernet edge scenarios. The MX960 provides a range of Ethernet services, including VPLS services for multi-point connectivity. The MX960 is 14-slot router with 480 Gbit/s throughput in performance. A 40-port Gigabit Ethernet “dense port card” (DPC) and a four-port 10G Ethernet DPC were the initial line card modules, with Trio-based 16x10GE linecards reaching the full-duplex 120 Gbit/s capacity. Each group of 4 10GE port on the Trio-based 16x10GE linecards has 40 Gbit/s forwarding capacity, but only 30 Gbit/s can be sent via the switch fabric toward other linecards (or other port groups of the same linecard).
The MX960 supports up to 16,000 VLANs per packet-forwarding engine. On a per-box basis, the MX960 supports 16,000 MPLS Label Switched Path head-ends, one million IPv4 and IPv6 routing-information base entries, 27 million IPv4 and IPv6 forwarding-information base entries; 25,000 Virtual Private LAN Services (VPLS) labels; 500 Open Shortest Path First (OSPF) sessions, 500 Intermediate-System-to-Intermediate-System (IS-IS) adjacencies, and 100 Label Distribution Protocol (LDP) sessions and 4,000 Border Gateway Protocol sessions.
| Part Number | Description | MSRP |
|---|---|---|
| MX960BASE-AC | Juniper Networks Chassis, Midplane, RE, 2-SCB, 3 AC PEM | Call |
| MX960BASE-AC-ECM | Juniper Networks Chassis, Midplane, RE, 2-SCB, 3 AC PEM, Enhanced Cable Manager | Call |
| MX960BASE-DC | Juniper Networks Chassis, Midplane, RE, 2-SCB, 2 DC PEM | Call |
| MX960BASE-DC-ECM | Juniper Networks Chassis, Midplane, RE, 2-SCB, 2 DC PEM, Enhanced Cable Manager | Call |
| MX960-PREMIUM-AC | Juniper Networks Base system with redundant RE-2000, SCB, and power | Call |
| MX960-PREMIUM-AC-ECM | Juniper Networks Base system with redundant RE-2000, SCB, power, Enhanced Cable Manager | Call |
| MX960-PREMIUM-DC | Juniper Networks Base system with redundant RE-2000, SCB, and power | Call |
| MX960-PREMIUM-DC-ECM | Juniper Networks Base system with redundant RE-2000, SCB, power, Enhanced Cable Manager | Call |
Juniper MX Control Boards
| Part Number | Description | MSRP |
|---|---|---|
| SCB-MX960-R | Juniper Networks Switch Control Board, MX960, Redundant | Call |
| SCB-MX960-S | Juniper Networks Switch Control Board, MX960, Spare | Call |
Juniper MX Series MIC Cards
| Part Number | Description | MSRP |
|---|---|---|
| MIC-3D-20GE-SFP | Juniper Networks 20x10/100/1000 MIC for MX, requires optics sold separately | Call |
| MIC-3D-2XGE-XFP | Juniper Networks 2x10G MIC for MX, requires optics sold separately | Call |
| MIC-3D-40GE-TX | Juniper Networks 40x10/100/1000 RJ-45 full height MIC (fixed optics) | Call |
| MIC-3D-4OC3OC12-1OC48 | Juniper Networks Low density multirate MIC, 4 port non-channelized OC3-OC12 / 1 port non-channelized OC48 MIC, (Requires a pluggable SFP optics module ) | Call |
| MIC-3D-4XGE-XFP | Juniper Networks 4x10G MIC for MX, requires optics sold separately | Call |
| MIC-3D-8OC3OC12-4OC48 | Juniper Networks High density multirate MIC, 8 port non-channelized OC3-OC12 / 4 port non-channelized OC48 MIC, (Requires a pluggable SFP optics module ) | Call |
Juniper MX Series Line Cards
| Part Number | Description | MSRP |
|---|---|---|
| MPC-3D-16XGE-SFPP | Juniper Networks 16x10GE line card, price includes full scale L2/L2.5 and reduced scale L3 features; requires SFPP optics sold separately | Call |
| MPC-3D-16XGE-SFPP-R-B | Juniper Networks 16x10GE line card bundle, price includes full scale L3, L2 and L2.5 features; requires SFPP optics sold separately | Call |
Juniper MX Series DPC Cards
| Part Number | Description | MSRP |
|---|---|---|
| DPC-R-20GE-2XGE | Juniper Networks 20 Port GE + 2 port 10GE DPC with L2+L3 features, Requires Optics Sold Separately | Call |
| DPC-R-2XGE-XFP | Juniper Networks 2x10GE DPC for MX, requires optics sold separately | Call |
| DPC-R-40GE-SFP | Juniper Networks 40x1GE DPC for MX, requires optics sold separately | Call |
| DPC-R-40GE-TX | Juniper Networks 40 Port 10/100/1000 RJ-45 DPC with L2+L3 Features. | Call |
| DPC-R-4XGE-XFP | Juniper Networks 4x10GE DPC for MX, requires optics sold separately | Call |
| DPC-R-Q-20GE-2XGE | Juniper Networks 20 Port GE + 2 port 10GE Queuing DPC with L2+L3 Features, Requires Optics Sold Separately | Call |
| DPC-R-Q-20GE-SFP | Juniper Networks 20x1G Queuing DPC for MX with full L2/L3 features & VLAN-HQoS, requires optics sold separately | Call |
| DPC-R-Q-40GE-SFP | Juniper Networks 40x1G Queuing DPC for MX with full L2/L3 features & VLAN-HQoS, requires optics sold separately | Call |
| DPC-R-Q-4XGE-XFP | Juniper Networks 4x10G Queuing DPC for MX with full L2/L3 features & VLAN-HQoS, requires optics sold separately | Call |
| DPC-X-20GE-2XGE | Juniper Networks 20 Port GE + 2 port 10GE DPC with L2+L2.5 features, Requires Optics Sold Separately | Call |
| DPC-X-40GE-SFP | Juniper Networks 40x1GE DPC for MX with L2/L2.5 features, requires optics sold separately | Call |
| DPC-X-40GE-TX | Juniper Networks 40 Port 10/100/1000 RJ-45 DPC with L2+L2.5 Features. | Call |
| DPC-X-4XGE-XFP | Juniper Networks 4x10GE DPC for MX with L2/L2.5 features, requires optics sold separately | Call |
| DPC-X-Q-40GE-SFP | Juniper Networks 40x1G Queuing DPC for MX with L2/L2.5 features & VLAN-HQoS, requires optics sold separately | Call |
| DPC-X-Q-4XGE-XFP | Juniper Networks 4x10G Queuing DPC for MX with L2/L2.5 features & VLAN-HQoS, requires optics sold separately | Call |
Juniper MX DPCE Cards
| Part Number | Description | MSRP |
|---|---|---|
| DPCE-R-20GE-2XGE | Juniper Networks 20 Port GE + 2 port 10GE DPC with L2+L3 features, Requires Optics Sold Separately | Call |
| DPCE-R-2XGE-XFP | Juniper Networks 2x10GE Enhanced DPC for MX, requires optics sold separately | Call |
| DPCE-R-40GE-SFP | Juniper Networks 40x1GE Enhanced DPC for MX, requires optics sold separately | Call |
| DPCE-R-40GE-TX | Juniper Networks 40 Port 10/100/1000 RJ-45 DPC with L2+L3 Features. | Call |
| DPCE-R-4XGE-XFP | Juniper Networks 4x10GE Enhanced DPC for MX, requires optics sold separately | Call |
| DPCE-R-Q-20GE-2XGE | Juniper Networks 20 Port GE + 2 port 10GE Enhanced Queuing DPC with L2+L3 Features, Requires Optics Sold Separately | Call |
| DPCE-R-Q-20GE-SFP | Juniper Networks 20x1G Enhanced Queuing DPC for MX with full L2/L3 features & VLAN-HQoS, requires optics sold separately | Call |
| DPCE-R-Q-40GE-SFP | Juniper Networks 40x1G Enhanced Queuing DPC for MX with full L2/L3 features & VLAN-HQoS, requires optics sold separately | Call |
| DPCE-R-Q-4XGE-XFP | Juniper Networks 4x10G Enhanced Queuing DPC for MX with full L2/L3 features & VLAN-HQoS, requires optics sold separately | Call |
| DPCE-X-20GE-2XGE | Juniper Networks 20 Port GE + 2 port 10GE DPC with L2+L2.5 features, Requires Optics Sold Separately | Call |
| DPCE-X-40GE-SFP | Juniper Networks 40x1GE DPC for MX with L2/L2.5 features, requires optics sold separately | Call |
| DPCE-X-40GE-TX | Juniper Networks 40 Port 10/100/1000 RJ-45 DPC with L2+L2.5 Features. | Call |
| DPCE-X-4XGE-XFP | Juniper Networks 4x10GE DPC for MX with L2/L2.5 features, requires optics sold separately | Call |
| DPCE-X-Q-40GE-SFP | Juniper Networks 40x1G Enhanced Queuing DPC for MX with L2/L2.5 features & VLAN-HQoS, requires optics sold separately | Call |
| DPCE-X-Q-4XGE-XFP | Juniper Networks 4x10G Enhanced Queuing DPC for MX with L2/L2.5 features & VLAN-HQoS, requires optics sold separately | Call |
Juniper MX PIC Concentrators
| Part Number | Description | MSRP |
|---|---|---|
| MX-FPC2 | MX-FPC2Juniper Networks MX Flexible PIC Concentrator (accepts Type 2 PICs) | Call |
| MX-FPC3 | Juniper Networks MX Flexible PIC Concentrator (accepts Type 3 PICs) | Call |
Juniper MX Routing Engine Boards
| Part Number | Description | MSRP |
|---|---|---|
| RE-S-1300-2048-R | Juniper Networks Routing engine with 1300MHz processor and 2GB memory, Redundant | Call |
| RE-S-1300-2048-S | Juniper Networks Routing engine with 1300MHz processor and 2GB memory, Spare | Call |
| RE-S-1300-2048-WW-S | Juniper Networks Routing engine with 1300MHz processor and 2GB memory, Spare (JUNOS WW) | Call |
| RE-S-2000-4096-R | Juniper Networks Routing engine with 2000MHz processor and 4GB memory, Redundant | Call |
| RE-S-2000-4096-S | Juniper Networks Routing engine with 2000MHz processor and 4GB memory, Spare | Call |
| RE-S-2000-4096-UPG-BB | Juniper Networks Upgrade from RE-1300-2048-BB to RE-2000-4096 on MX960BASE system - Partially included in Base | Call |
| RE-S-2000-4096-WW-S | Juniper Networks Routing engine with 2000MHz processor and 4GB memory, Spare (JUNOS WW) | Call |
